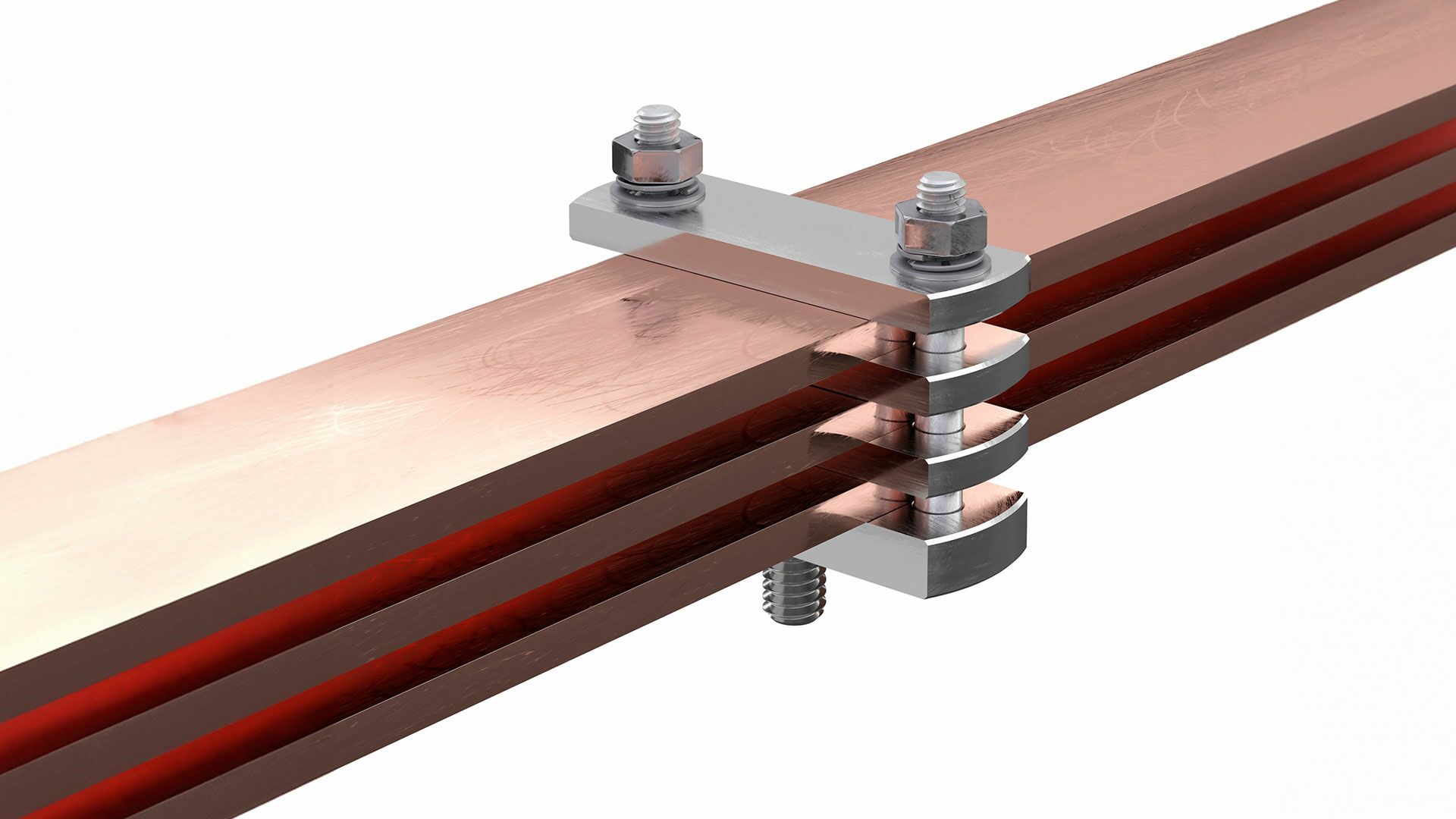

For guiding and supporting electrical lines and cables.
Cable carriers are mechanical support structures used in various industrial and commercial installations to guide and support electrical wires and cables. They provide organisation, protection and systematic arrangement of cables, which enables efficient maintenance and expansion of the electrical system. Cable trays can be made of various materials such as metal or plastic and are adapted to the specific environmental conditions and load requirements of the respective application.
Filtering the line carrier
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 130 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 174 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 75 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 95 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 133 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 60 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 95 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 133 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 60 |
| Foot fitting: | M12x30 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 95 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 133 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 60 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 95 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 133 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 60 |
| Foot fitting: | M16x33 |
| Head fitting: | M12x18 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 130 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 174 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 70 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x20 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 95 |
| Diameter in mm: | 72 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 133 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 60 |
| Foot fitting: | M16x25 |
| Head fitting: | M16x25 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 130 |
| Diameter in mm: | 72 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 187 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 75 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 130 |
| Diameter in mm: | 90 |
| Bending strength in kN: | 16 |
| Creepage distance in mm: | 195 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 75 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 130 |
| Diameter in mm: | 130 |
| Bending strength in kN: | 25 |
| Creepage distance in mm: | 261 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 75 |
| Foot fitting: | M24x35 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 12 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 175 |
| Diameter in mm: | 70 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 258 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 95 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 175 |
| Diameter in mm: | 70 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 258 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 95 |
| Foot fitting: | M16x33 |
| Head fitting: | M12x18 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 210 |
| Diameter in mm: | 70 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 296 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 125 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 210 |
| Diameter in mm: | 70 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 296 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 125 |
| Foot fitting: | M16x33 |
| Head fitting: | M12x18 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 175 |
| Diameter in mm: | 80 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 259 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 95 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 210 |
| Diameter in mm: | 85 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 308 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 125 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 210 |
| Diameter in mm: | 85 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 308 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 125 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 210 |
| Diameter in mm: | 98 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 417 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 125 |
| Foot fitting: | M20x34 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 24 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 300 |
| Diameter in mm: | 80 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 434 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 170 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 36 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 300 |
| Diameter in mm: | 80 |
| Bending strength in kN: | 5 |
| Creepage distance in mm: | 434 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 170 |
| Foot fitting: | M16x33 |
| Head fitting: | M10x16 |
| Permissible operating voltage in kV: | 36 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 300 |
| Diameter in mm: | 95 |
| Bending strength in kN: | 7.5 |
| Creepage distance in mm: | 434 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 170 |
| Foot fitting: | M24x35 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 36 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 325 |
| Diameter in mm: | 98 |
| Bending strength in kN: | 10 |
| Creepage distance in mm: | 546 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Rated AC voltage in kV: | 180 |
| Foot fitting: | M24x35 |
| Head fitting: | M16x33 |
| Permissible operating voltage in kV: | 38,5 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 30 |
| Diameter in mm: | 33 |
| Bending strength in kN: | 3 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Tensile strength in kN: | 6 |
| Foot fitting: | M8x8 |
| Head fitting: | M8x8 |
| Permissible operating voltage in kV: | 2 kV |
Support insulator made of epoxy cast resin for indoor systems
| Total length in mm: | 0 |
| Height in mm: | 60 |
| Diameter in mm: | 60 |
| Bending strength in kN: | 12.5 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
| Tensile strength in kN: | 22.5 |
| Foot fitting: | M12x18 |
| Head fitting: | M12x18 |
| Permissible operating voltage in kV: | 3 kV |
