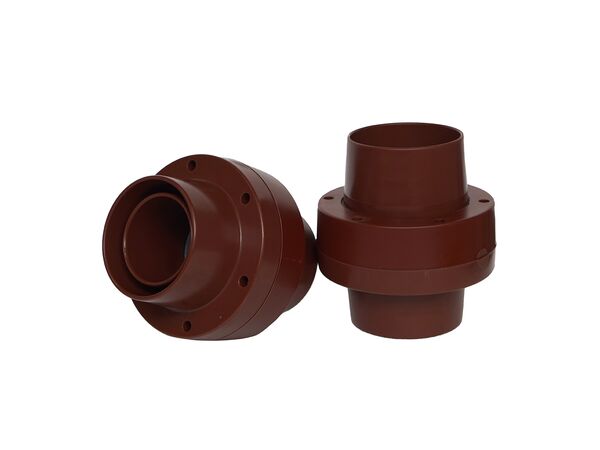

GKD 12/55
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 120 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
Bushings
Safe routing through barriers
For electrical insulation between the conductor and the barrier.

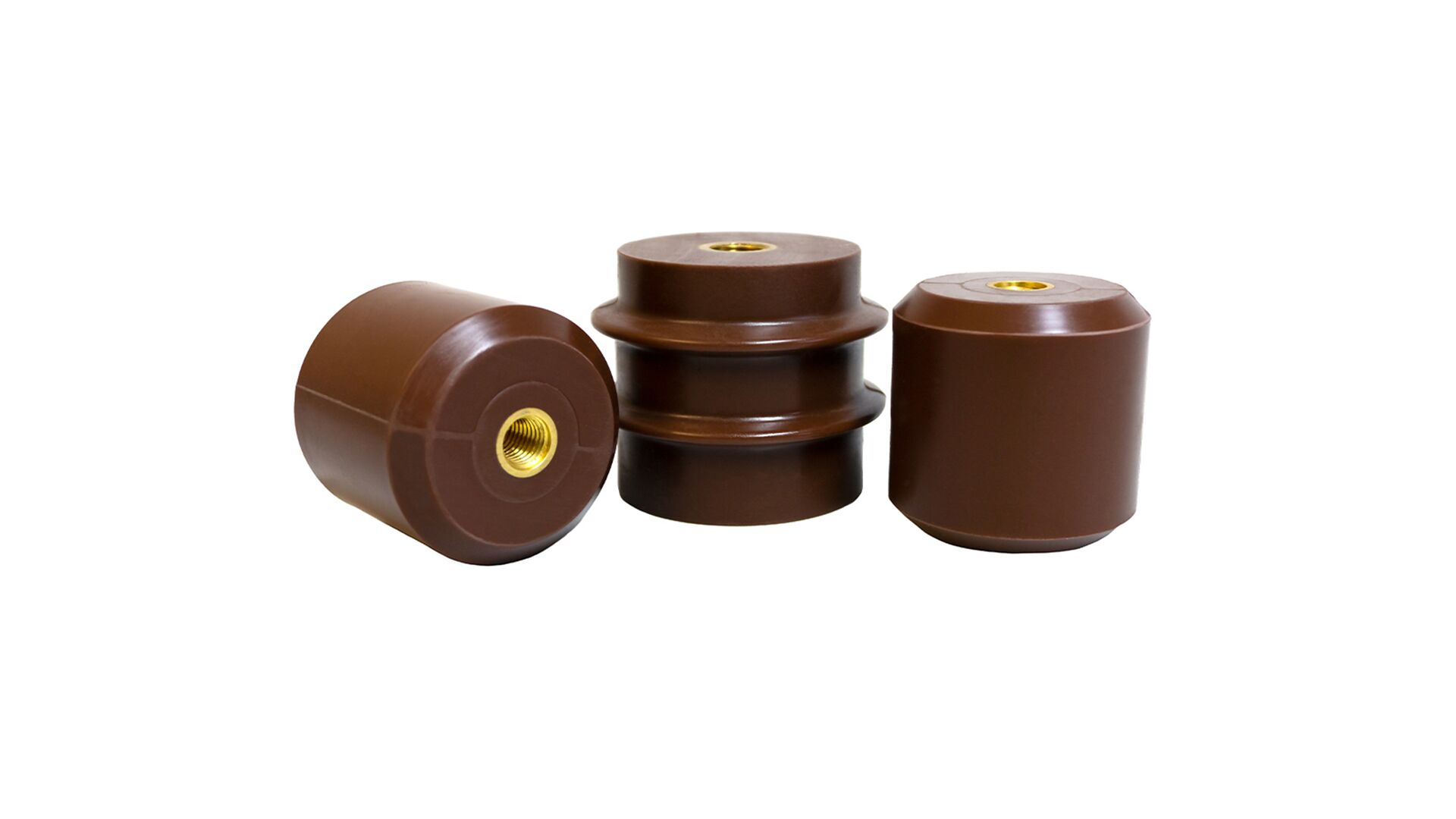

Bushings
Feed-through insulators are special electrical insulation components used to safely feed conductors through a separating barrier such as a wall or enclosure while maintaining electrical insulation between the conductor and the barrier. These insulators are critical to ensuring electrical safety and reliability.
Filter Bushings
GKD 12/75
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 120 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GKD 12/95
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 120 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GKD 24-36/55
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 230 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GKD 24-36/75
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 230 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GKD 24-36/115
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 230 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GKD 24-36/145
Cast resin screw feedthrough
Screwable feedthrough for indoor systems
| Creepage distance in mm: | 230 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 12/95
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 140 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 24/75
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 250 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 36/115
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 350 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 36/55
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 350 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 24/95
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 250 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 12/145
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 140 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GBD 24/400 M16
Cast resin bolt bushing
Bolt bushing for outdoor/indoor systems
| Creepage distance in mm: | 815 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor/outdoor facility |
GOD 12/115.4
Cast resin O-ring feedthrough
Clampable feedthrough for indoor systems
| Creepage distance in mm: | 120 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
GDD 12/75
Cast resin through-hole feedthrough
Through-hole feedthrough for indoor systems
| Creepage distance in mm: | 140 |
| Temperature range in °C: | -40/+90 °C |
| Indoor/outdoor system: | Indoor facility |
