Product number: 11111127
Outdoor cabinet made of double-walled aluminum profiles with a single door
Double-walled aluminum control cabinet
- Description
- Designs
- Features

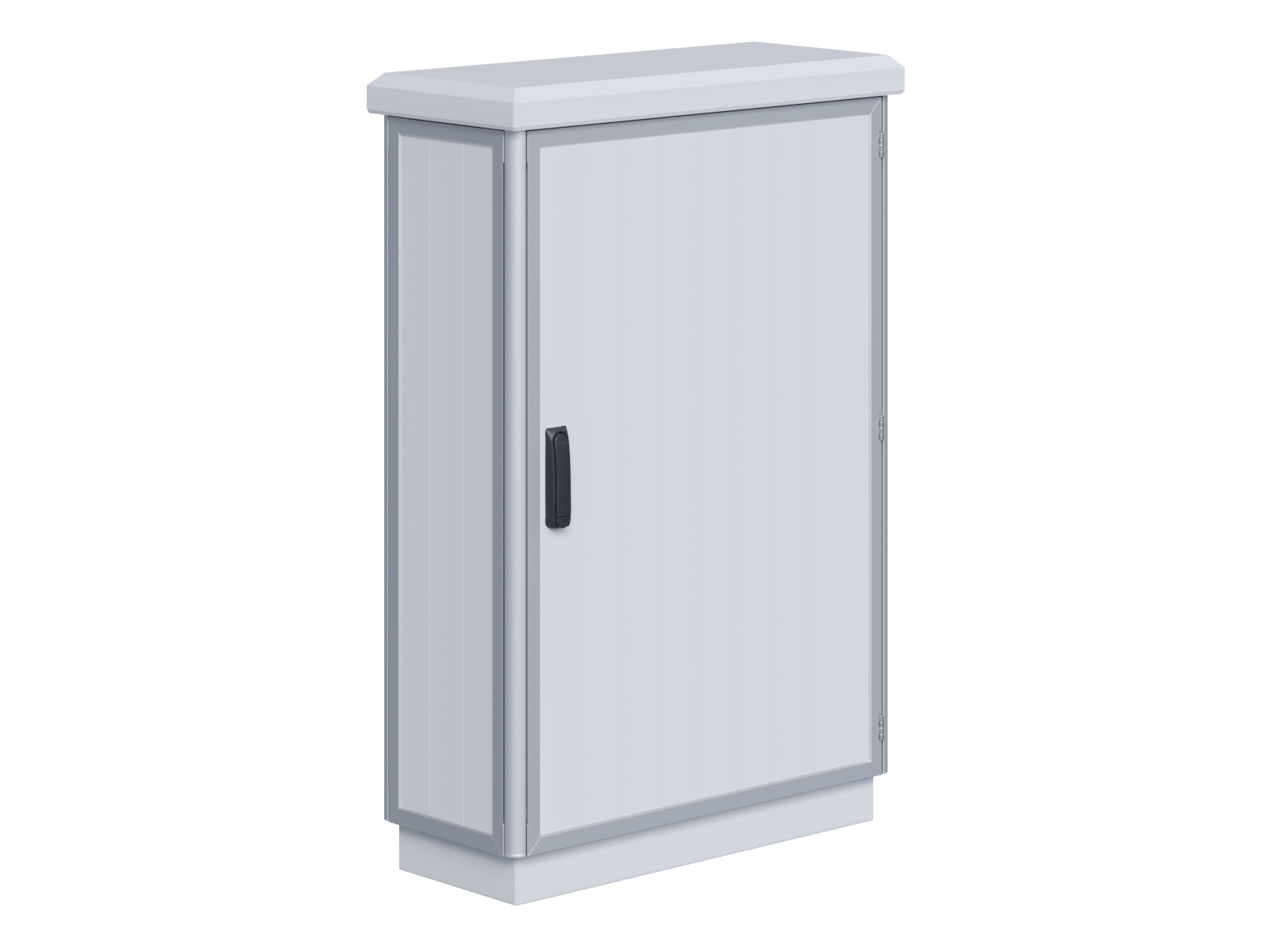

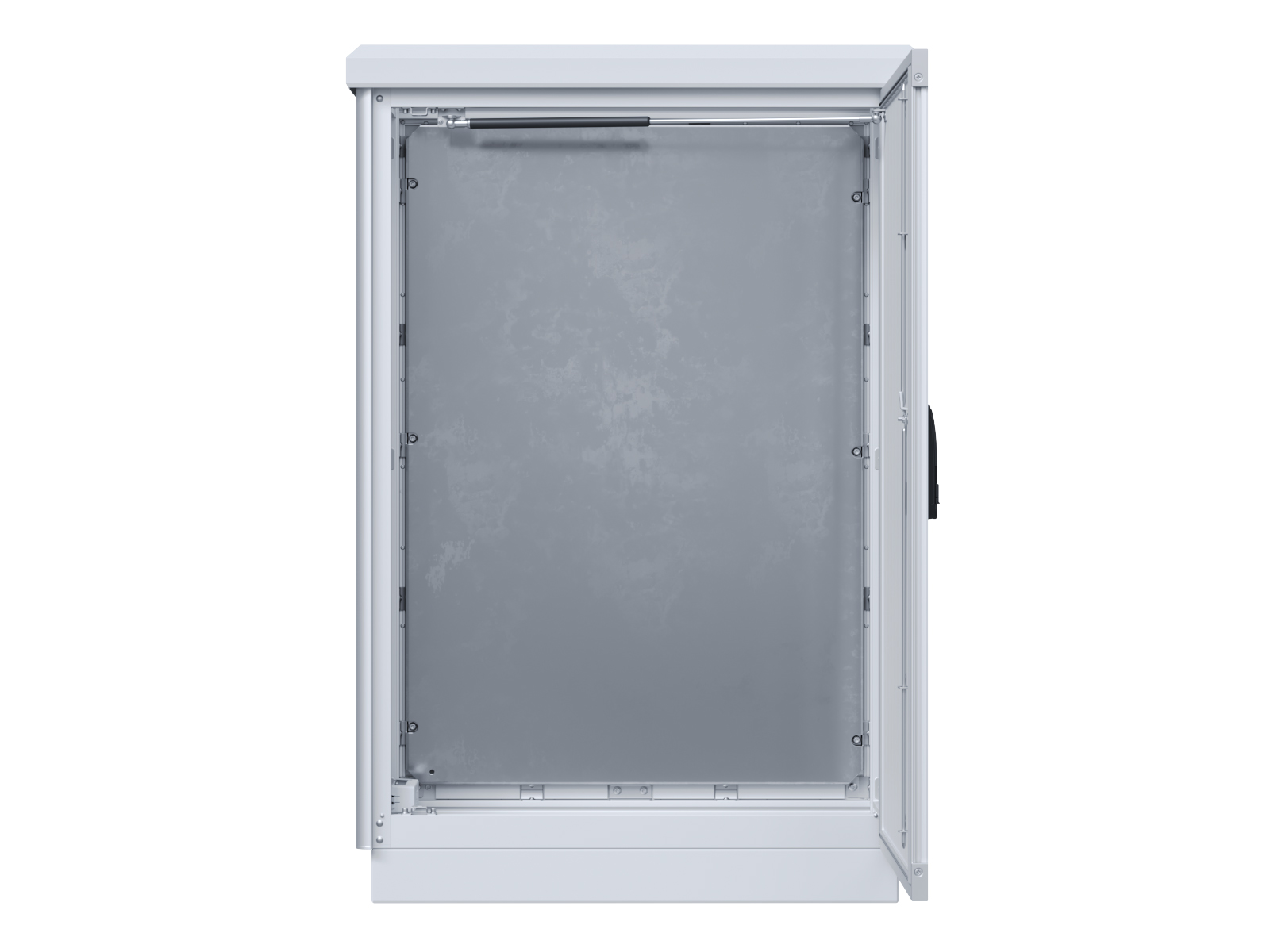

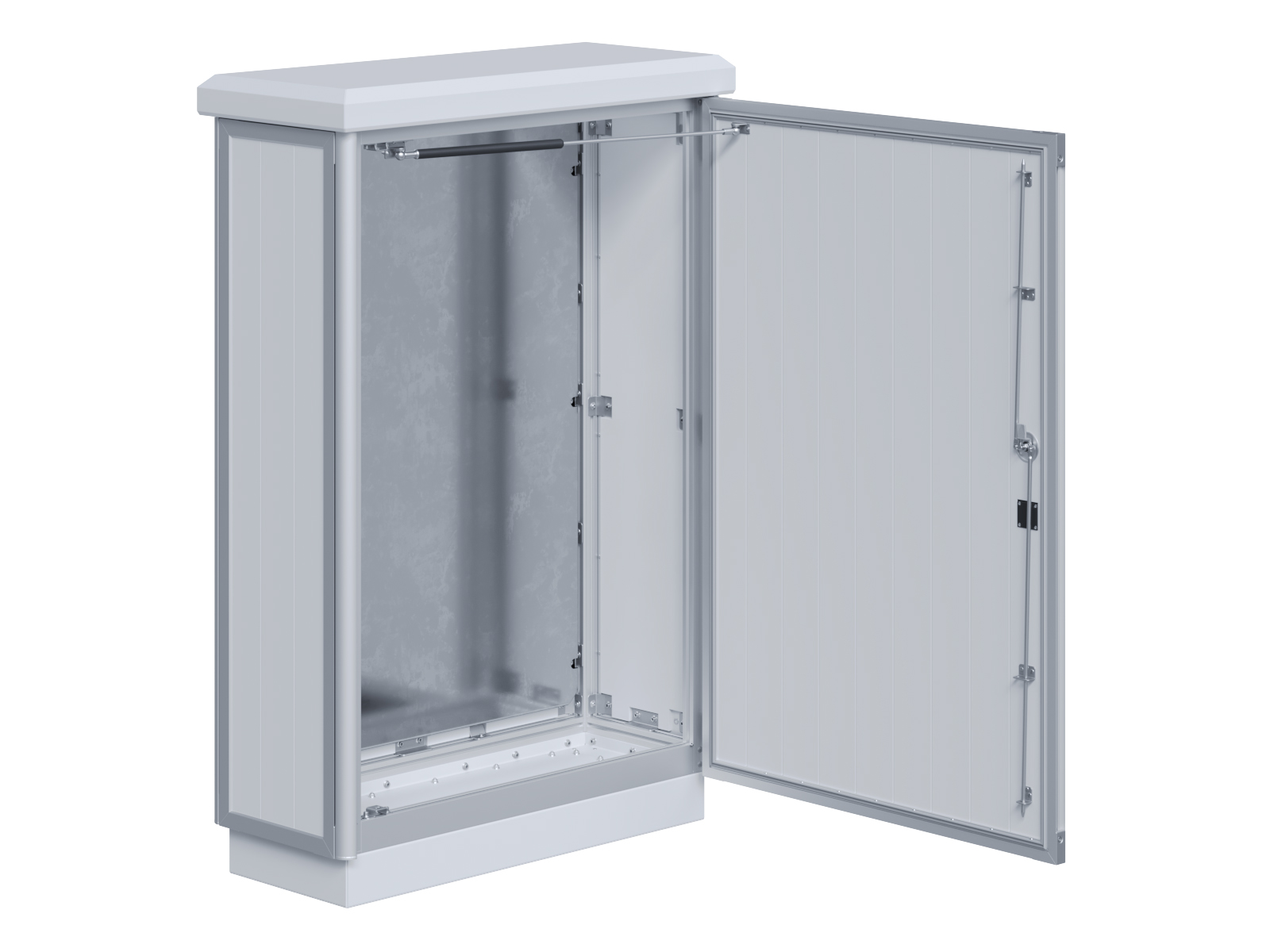

Outdoor control cabinet made of double-walled aluminum profiles
Outdoor cabinet made of double-walled aluminum profiles with a single door - Designs
| Description | ID | Enclosure height (plus roof and base) | Casing width | Casing depth | |
|---|---|---|---|---|---|
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111111 | 1.000 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111112 | 1.200 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111113 | 1.400 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111114 | 1.600 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111115 | 1.800 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111116 | 2.000 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111117 | 2.200 mm | 600 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111118 | 1.000 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111119 | 1.200 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111120 | 1.400 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111121 | 1.600 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111122 | 1.800 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111123 | 2.000 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111124 | 2.200 mm | 800 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111125 | 1.000 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111126 | 1.200 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111127 | 1.400 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111128 | 1.600 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111129 | 1.800 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111130 | 2.000 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111131 | 2.200 mm | 1.000 mm | 400 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111132 | 1.000 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111133 | 1.200 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111134 | 1.400 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111135 | 1.600 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111136 | 1.800 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111137 | 2.000 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111138 | 2.200 mm | 600 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111139 | 1.000 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111140 | 1.200 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111141 | 1.400 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111142 | 1.600 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111143 | 1.800 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111144 | 2.000 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111145 | 2.200 mm | 800 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111146 | 1.000 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111147 | 1.200 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111148 | 1.400 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111149 | 1.600 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111150 | 1.800 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111151 | 2.000 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111152 | 2.200 mm | 1.000 mm | 500 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111153 | 1.000 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111154 | 1.200 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111155 | 1.400 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111156 | 1.600 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111157 | 1.800 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111158 | 2.000 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111159 | 2.200 mm | 600 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111160 | 1.000 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111161 | 1.200 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111162 | 1.400 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111163 | 1.600 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111164 | 1.800 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111165 | 2.000 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111166 | 2.200 mm | 800 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111167 | 1.000 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111168 | 1.200 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111169 | 1.400 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111170 | 1.600 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111171 | 1.800 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111172 | 2.000 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111173 | 2.200 mm | 1.000 mm | 600 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111174 | 1.000 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111175 | 1.200 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111176 | 1.400 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111177 | 1.600 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111178 | 1.800 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111179 | 2.000 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111180 | 2.200 mm | 600 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111181 | 1.000 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111182 | 1.200 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111183 | 1.400 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111184 | 1.600 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111185 | 1.800 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111186 | 2.000 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111187 | 2.200 mm | 800 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111188 | 1.000 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111189 | 1.200 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111190 | 1.400 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111191 | 1.600 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111192 | 1.800 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111193 | 2.000 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111194 | 2.200 mm | 1.000 mm | 700 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111195 | 1.000 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111196 | 1.200 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111197 | 1.400 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111198 | 1.600 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111199 | 1.800 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111200 | 2.000 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111201 | 2.200 mm | 600 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111202 | 1.000 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111203 | 1.200 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111204 | 1.400 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111205 | 1.600 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111206 | 1.800 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111207 | 2.000 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111208 | 2.200 mm | 800 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111209 | 1.000 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111210 | 1.200 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111211 | 1.400 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111212 | 1.600 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111213 | 1.800 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111214 | 2.000 mm | 1.000 mm | 800 mm | Details |
| Outdoor cabinet made of double-walled aluminum profiles with a single door | 11111215 | 2.200 mm | 1.000 mm | 800 mm | Details |
Outdoor cabinet made of double-walled aluminum profiles with a single door - Features
| Designation | Value |
|---|---|
| Enclosure height (plus roof and base) | 1.400 mm |
| Casing width | 1.000 mm |
| Casing depth | 400 mm |
| Type | Single door |
| Frame height (plus roof and base) | 1.400 mm |
| External dimensions Width | 1.009 mm |
| External dimensions Depth | 409 mm |
| Internal height | 1.280 mm |
| Internal width | 883 mm |
| Internal depth | 283 mm |
| Total height incl. roof (with roof vent) | 1.485 mm |
| Rain canopy width | 1.040 mm |
| Rain canopy depth | 442 mm |
| Fastening dimension Width | 861 mm |
| Mounting dimension Depth | 860 mm |
| Mounting plate height | 1.240 mm |
| Mounting plate width | 860 mm |
| Number of mounting plates | 1 |
| Plinth frame width | 953 mm |
| Plinth frame depth | 353 mm |
| Plinth fixing dimension Width | 908 mm |
| Plinth fixing dimension Depth | 260 mm |
