Product number: 108010101

LKHEB 16/25

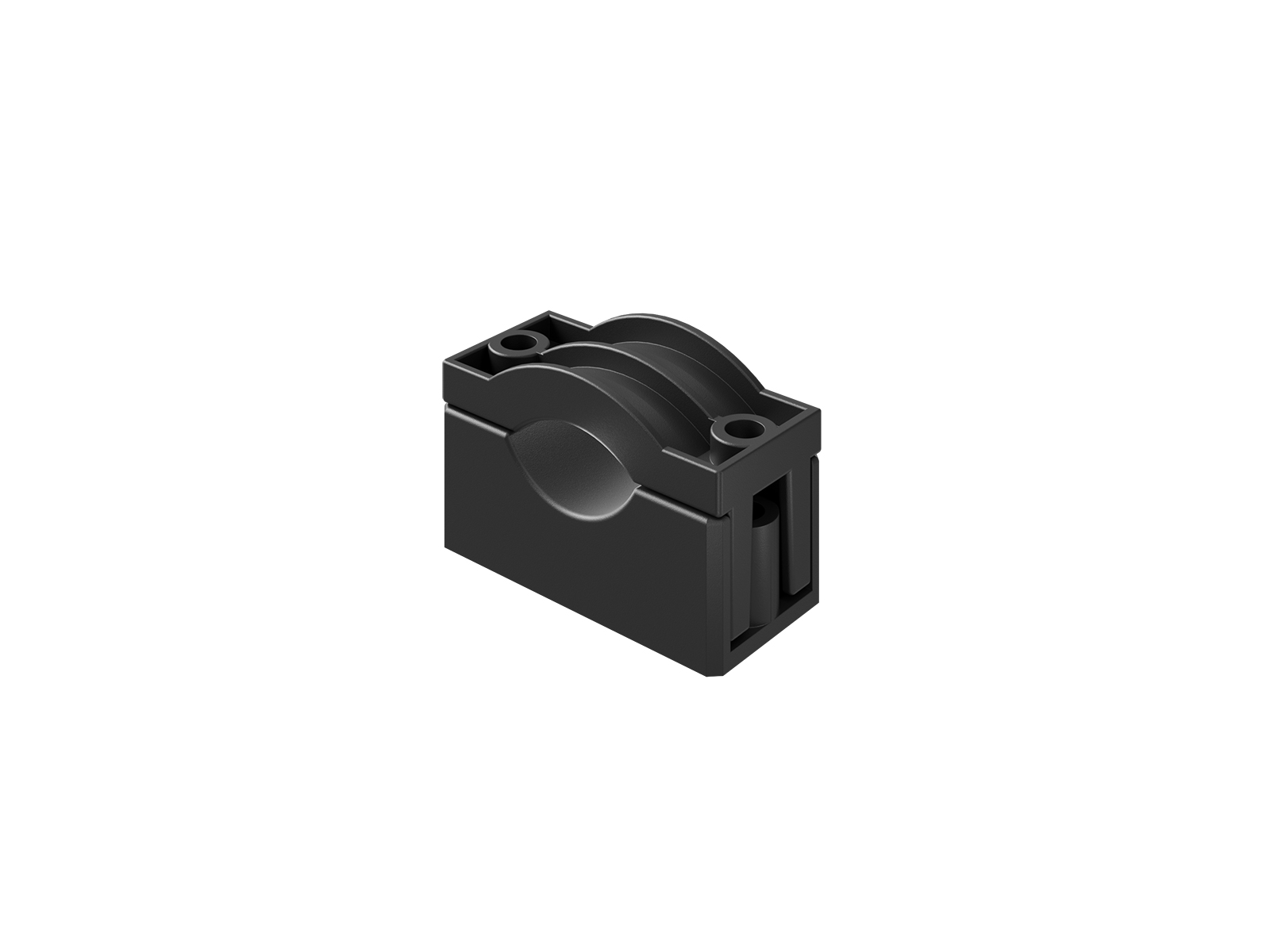

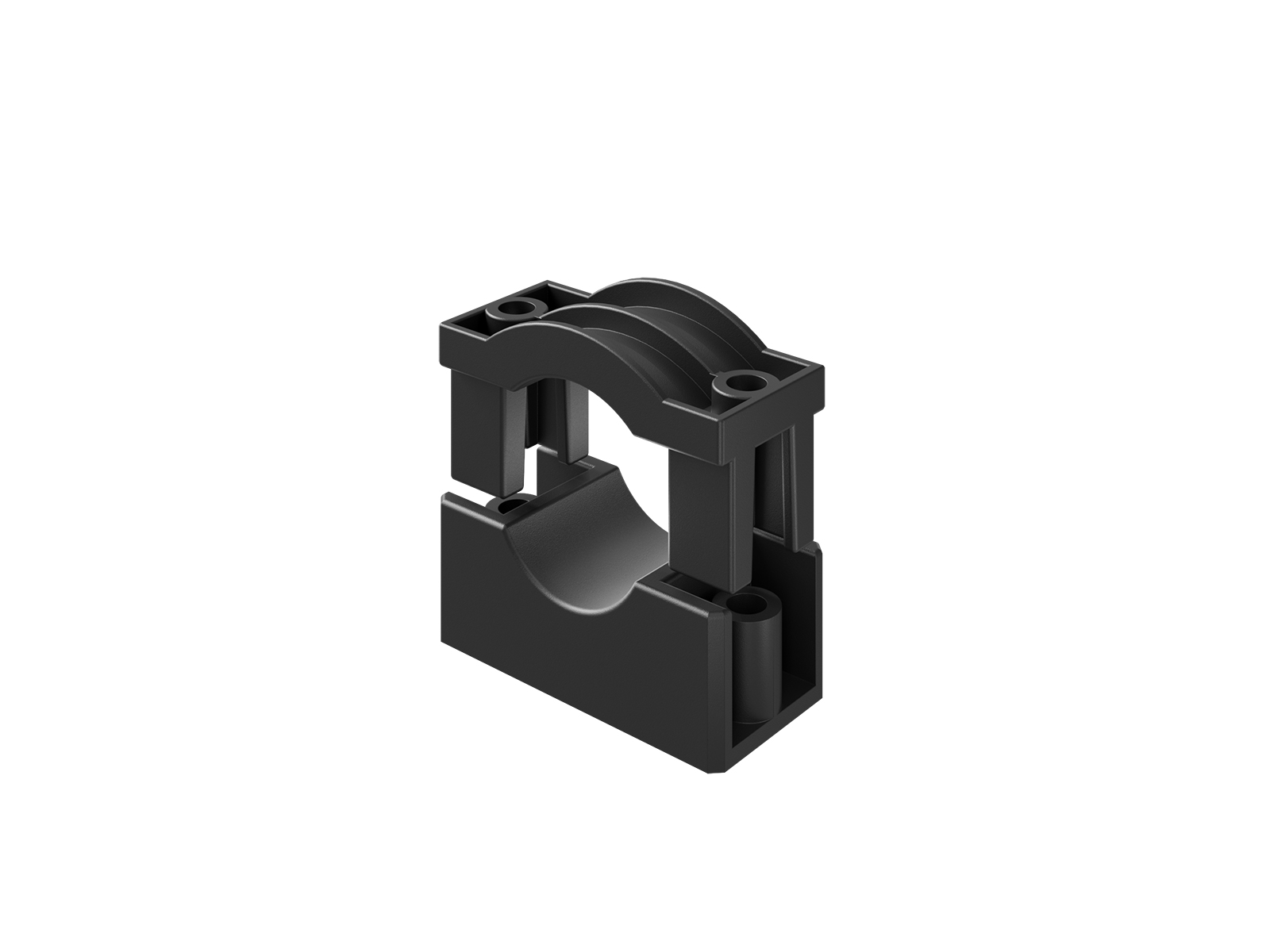

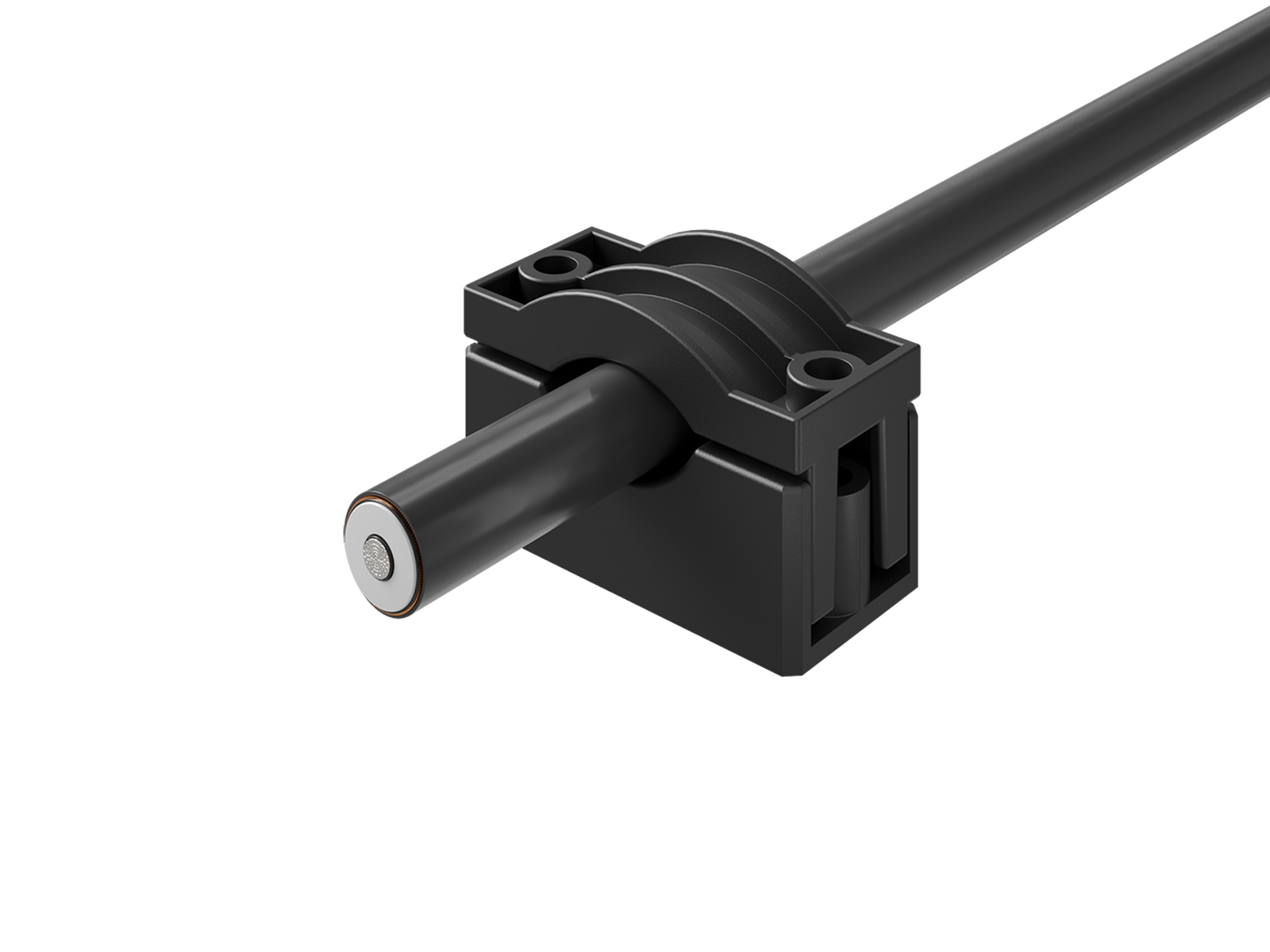

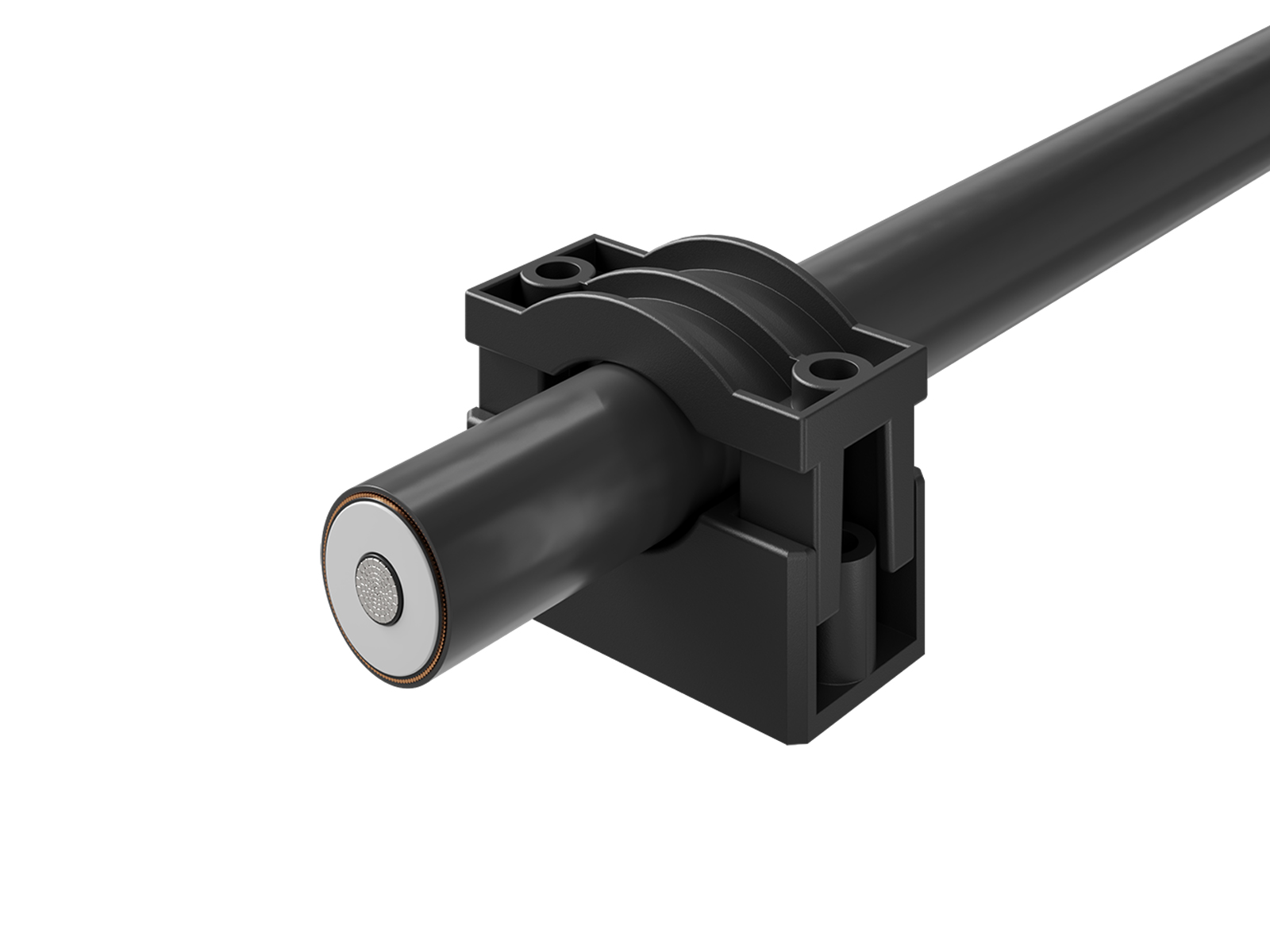

Single cable clamp

Plastic cable clamp for securing single and multi-conductor cables

Type: Single
Breaking strength: 8.5
Outer cable diameter: 16-25 mm

Type: Single Breaking strength: 8.5 Outer cable diameter: 16-25 mm

Request now

Cable clamp made of glass fiber reinforced polyamide

Fastening clamp for low, medium, and high voltage cables

Suitable for indoor and outdoor use

Resistant to UV radiation, ozone, salt, moisture, fats, mineral oils, fuels, alkalis, alcohols, and radioactive radiation

Operating temperature between -60°C and 120°C (short-term heating up to 220°C)

Material: polyamide reinforced with 30% glass fiber, color: black

Non-metallic, non-magnetic, corrosion-free

LKHEB 16/25 - Designs

Description	ID	Type	Breaking strength	Outer cable diameter
LKHES 16/25	108010100	Single	4.5	16-25 mm	Details
LKHEB 16/25	108010101	Single	8.5	16-25 mm	Details
LKHE 45/55	108010105	Single	10	45-55 mm	Details
LKHE 90/110	108010109	Single	10	90-110 mm	Details
LKHE 35/54	108010113	Single	12	35-54 mm	Details
LKHE 35/65	108010114	Single	12	35-65 mm	Details
LKHES 24/38	108010115	Single	8.5	24-38 mm	Details
LKHEB 24/38	108010116	Single	13	24-38 mm	Details
LKHE 50/76	108010117	Single	17	50-76 mm	Details
LKHE 33/45	108010118	Single	15	33-45 mm	Details
LKHE 26/52	108010119	Single	12	26-52 mm	Details
LKHE 60/92	108010127	Single	13	60-92 mm	Details

LKHEB 16/25 - Features

Designation	Value
Type	Single
Breaking strength	8.5
Outer cable diameter	16-25 mm

Downloads

Distance calculation for cable clamps Download
