Product number: 108010117

LKHE 50/76

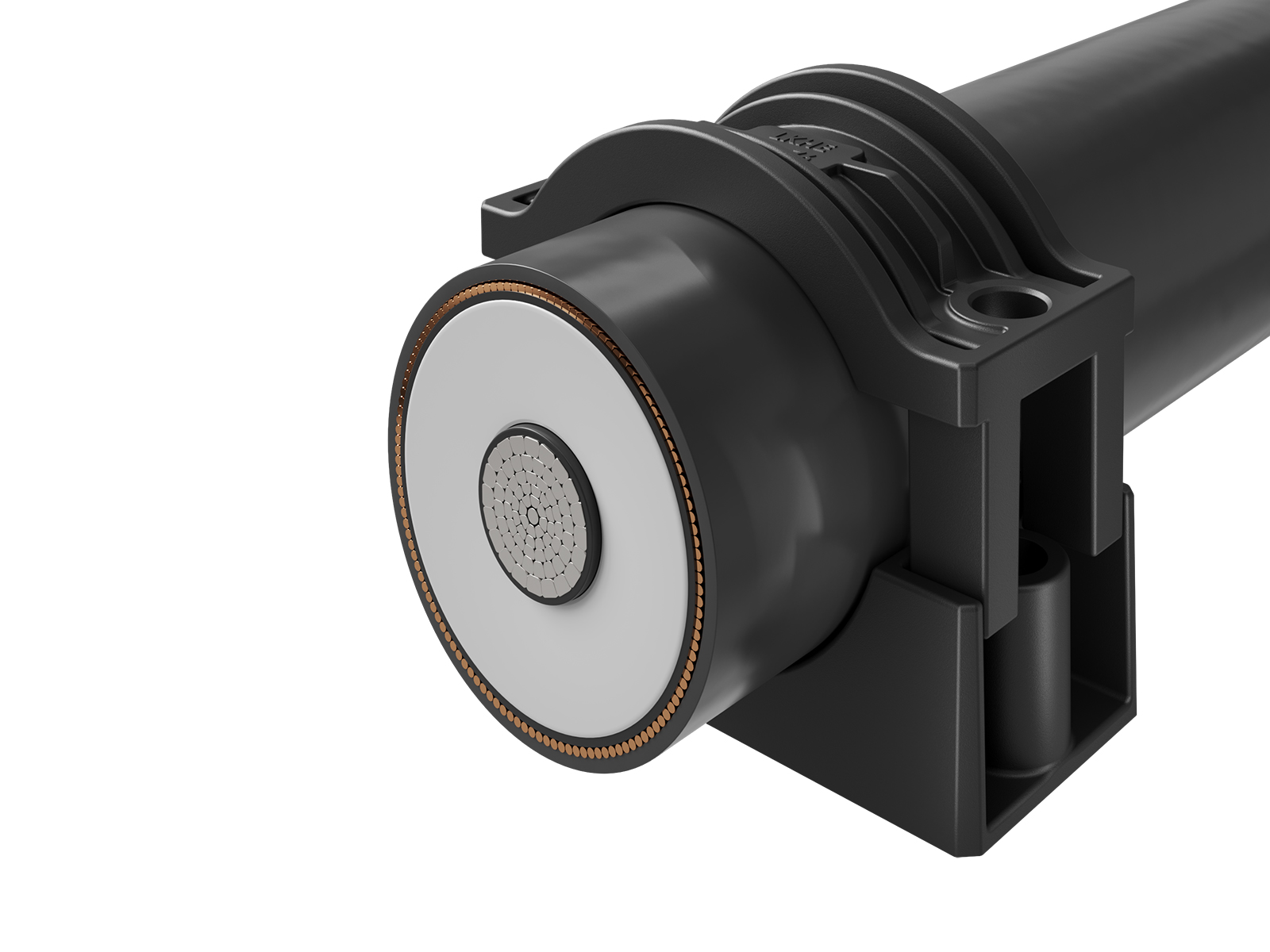

Single cable clamp

Plastic cable clamp for attaching single and multi-conductor cables

  • Type: Single
  • Breaking strength in kN: 17
  • Outer cable diameter: 50-76 mm
Request now
  • Description
  • Group
  • Features

Cable clamp made of glass fiber reinforced polyamide
Fastening clamp for low, medium and high-voltage cables
Suitable for indoor and outdoor use
Resistant to UV radiation, ozone, salt, moisture, grease, mineral oils, fuels, alkalis, alcohols and radioactive radiation
Service temperature between -60° and 120°C (short-term heating up to 220°C)
Material Polyamide glass fiber reinforced 30%, color black
Non-metallic, non-magnetic, non-corrosive

LKHE 50/76 - Group

Description ID Type Breaking strength in kN Outer cable diameter
LKHES 16/25 108010100 Single 4.5 16-25 mm To the details
LKHEB 16/25 108010101 Single 8.5 16-25 mm To the details
LKHE 45/55 108010105 Single 10 45-55 mm To the details
LKHE 90/110 108010109 Single 10 90-110 mm To the details
LKHE 35/54 108010113 Single 12 35-54 mm To the details
LKHE 35/65 108010114 Single 12 35-65 mm To the details
LKHES 24/38 108010115 Single 8.5 24-38 mm To the details
LKHEB 24/38 108010116 Single 13 24-38 mm To the details
LKHE 50/76 108010117 Single 17 50-76 mm To the details
LKHE 33/45 108010118 Single 15 33-45 mm To the details
LKHE 26/52 108010119 Single 12 26-52 mm To the details
LKHE 60/92 108010127 Single 13 60-92 mm To the details

LKHE 50/76 - Features

Designation Value
Type Single
Breaking strength in kN 17
Outer cable diameter 50-76 mm
