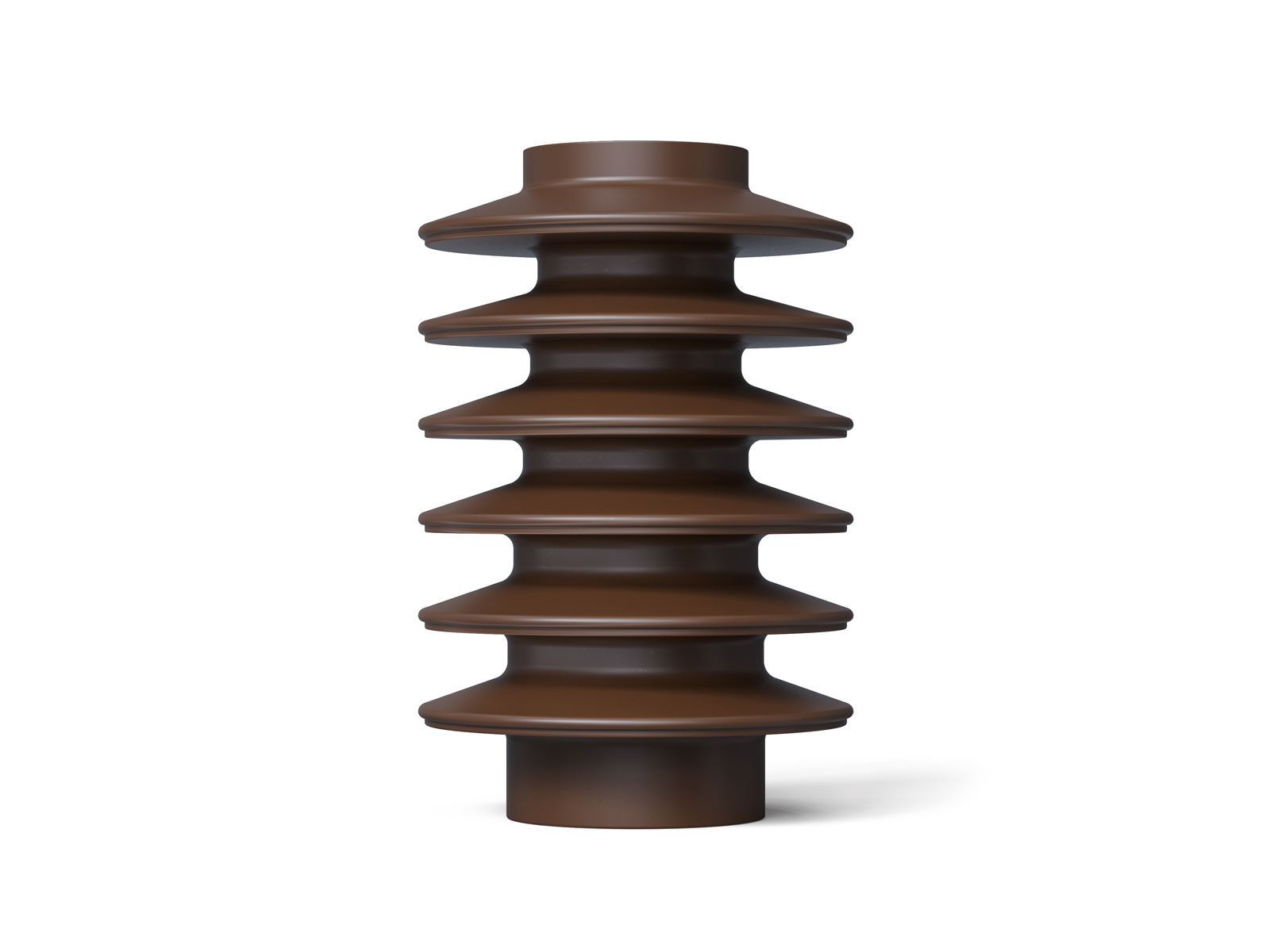

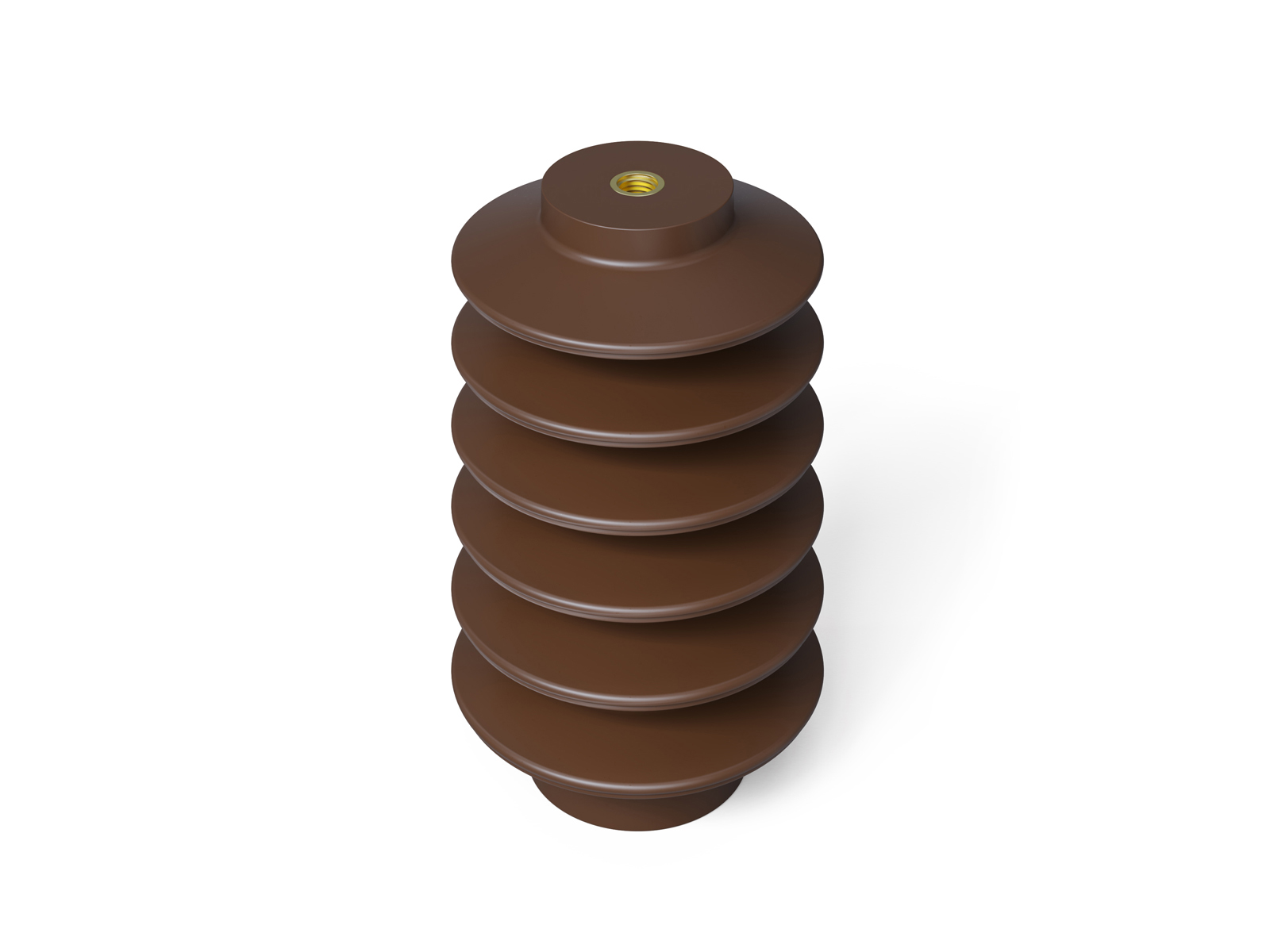

FS12-11 hanging

Cast resin outdoor support 12kV suspended

Support insulator made of cycloaliphatic epoxy casting resin for outdoor installations

Request now
  • Description
  • Designs
  • Features

Support insulator made of cycloaliphatic epoxy casting resin for outdoor installations

FS12-11 hanging - Designs

Description ID Material Height Diameter Bending strength Creepage distance Temperature range AC withstand voltage in kV dry Indoor/outdoor system Rated AC voltage Foot fitting Head fitting Permissible operating voltage
FS12-10-M16+M20 201010500 Epoxy casting resin 210 135 10 514 -40/+90 °C 50 open-air facility 125 M20x34 M16x33 12 kV Details
FS24-12-M16 201010501 Epoxy casting resin 280 170 12 849 -40/+90 °C 117 open-air facility 193 M16x35 M16x35 24 kV Details
FS36-8-M16+M20 201010502 Epoxy casting resin 360 170 8 849 -40/+90 °C 135 open-air facility 230 M20x40 M16x33 24 kV Details
FS6-6-M10 201010503 Epoxy casting resin 60 60 6 85 -40/+90 °C open-air facility 60 M10x16 M10x16 6 kV Details
FS6-7.5-M12 201010504 Epoxy casting resin 60 60 7.5 85 -40/+90 °C open-air facility 60 M12x18 M12x18 6 kV Details
FS6-10-M16 201010505 Epoxy casting resin 60 60 10 85 -40/+90 °C open-air facility 60 M16x20 M16x20 6 kV Details
FS24-12-M16+M20 201010506 Epoxy casting resin 280 170 12 849 -40/+90 °C 117 open-air facility 193 M20x34 M16x33 24 kV Details
FS24-7 hanging 201010508 Epoxy casting resin 280 135 7 823 -40/+90 °C 50 open-air facility 125 M16x42 M16x42 24 kV Details
FS45-4-M16+M20 201010509 Epoxy casting resin 500 170 4 1547 -40/+90 °C 95 open-air facility 250 M20x34 M16x33 45 kV Details
FS12-11 hanging 201010510 Epoxy casting resin 210 135 11 514 -40/+90 °C 50 open-air facility 125 M16x42 M16x42 12 kV Details
A12N-2 M16/M16 Cyclo 201010511 Epoxy casting resin 130 60 5 -40/+90 °C open-air facility 75 M16x33 M16x33 12 kV Details
40/40-M10 GH Cyclo 201010512 Epoxy casting resin 40 45 6 -40/+90 °C open-air facility M10x12 M10x12 Details
A12N-1 M10/M16 Cyclo 201010515 Epoxy casting resin 130 60 5 -40/+90 °C open-air facility 75 M16x33 M16x20 Details
FS36-8-M16 hanging 201010516 Epoxy casting resin 360 135 8 981 -40/+90 °C 70 open-air facility 170 M16x42 M16x42 36 kV Details
FS36-5-M10+M16 201010517 Epoxy casting resin 360 135 5 980 -40/+90 °C 70 open-air facility 170 M16x33 M10x20 36 kV Details
FS24-5-M16+M16 201010518 Epoxy casting resin 210 135 5 514 -40/+90 °C 50 open-air facility 125 M16x33 M16x33 24 kV Details

FS12-11 hanging - Features

Designation Value
Material Epoxy casting resin
Height 210
Diameter 135
Bending strength 11
Creepage distance 514
Temperature range -40/+90 °C
AC withstand voltage in kV dry 50
Indoor/outdoor system open-air facility
Rated AC voltage 125
Foot fitting M16x42
Head fitting M16x42
Permissible operating voltage 12 kV
