Product number: 201010118
A36N-1-M10+M16
Cast resin interior support 36kV
- Height: 300
- Diameter: 80
- Bending strength: 5
Height:
300
Diameter:
80
Bending strength:
5
- Description
- Designs
- Features

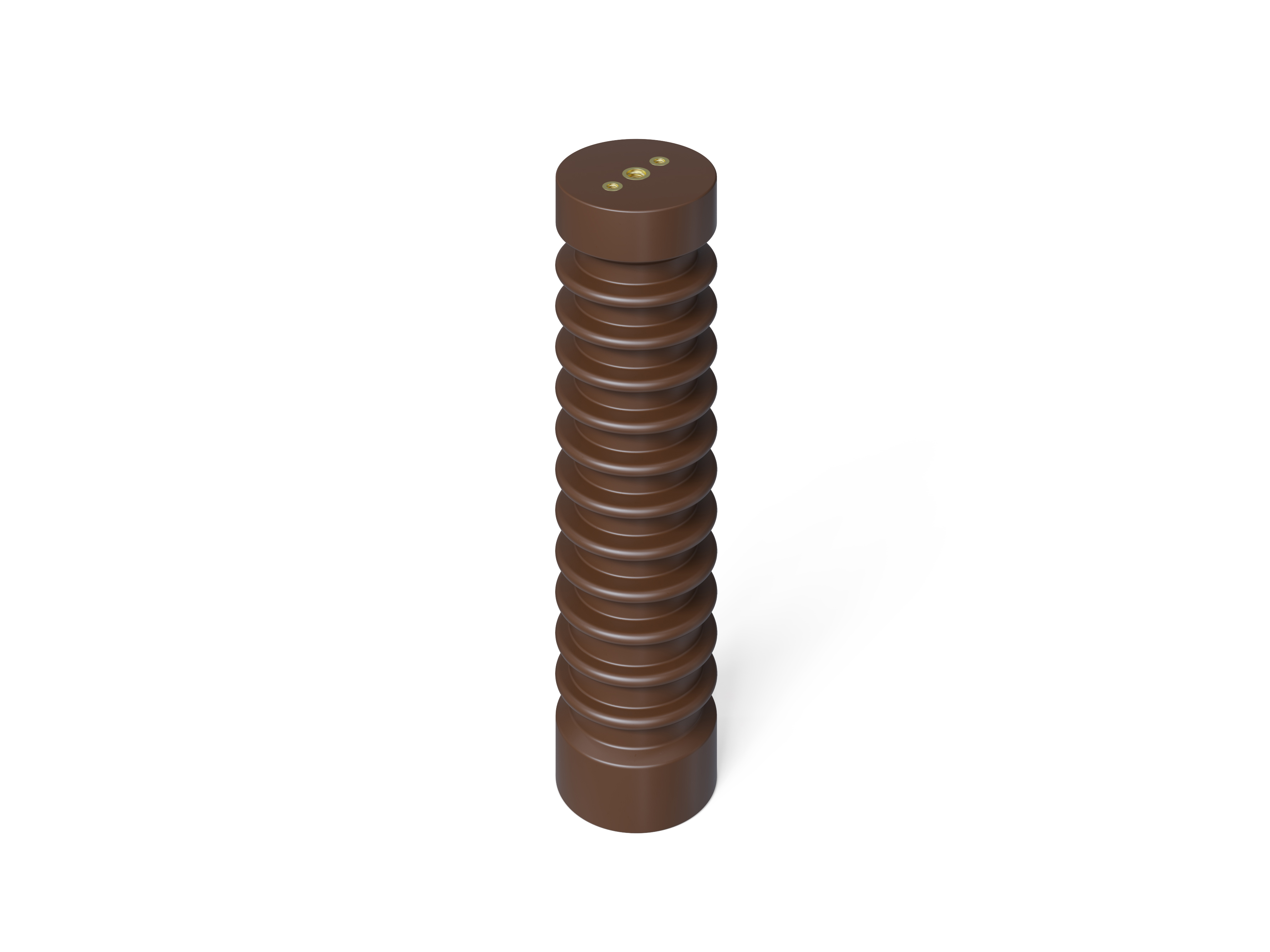

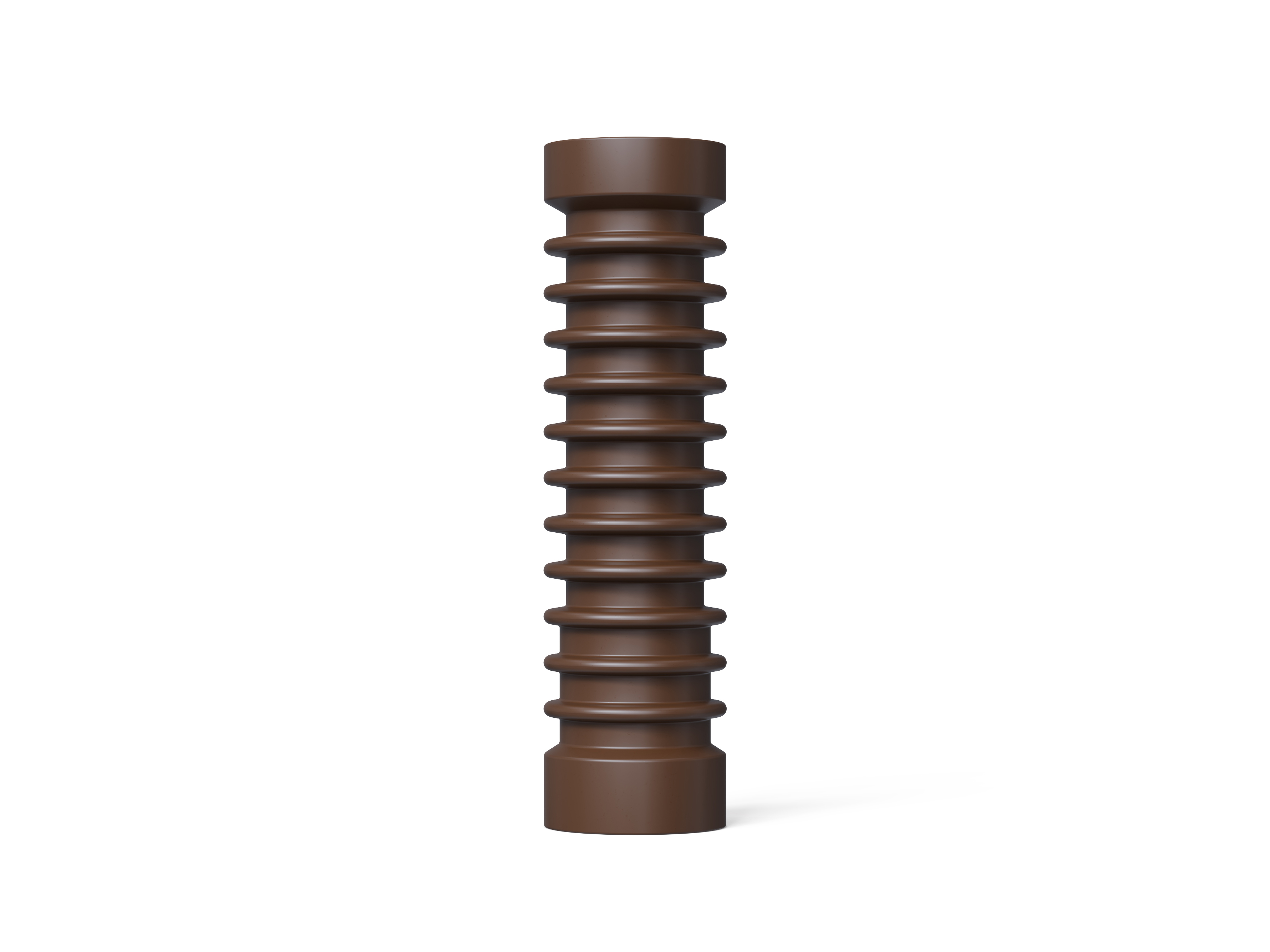

Epoxy resin support insulator for indoor installations
A36N-1-M10+M16 - Designs
| Description | ID | Material | Height | Diameter | Bending strength | |
|---|---|---|---|---|---|---|
| A12N-1-M10+M16 | 201010100 | Epoxy casting resin | 130 | 60 | 5 | Details |
| A12S-1-M10+M16 | 201010101 | Epoxy casting resin | 95 | 60 | 5 | Details |
| A12S-1-M10+M12 | 201010102 | Epoxy casting resin | 95 | 60 | 5 | Details |
| A12S-2-M10+M16 | 201010103 | Epoxy casting resin | 95 | 60 | 5 | Details |
| A12S-1-M12+M16 | 201010104 | Epoxy casting resin | 95 | 60 | 5 | Details |
| A12N-2-M10+M16 | 201010105 | Epoxy casting resin | 130 | 60 | 5 | Details |
| B12S-1-M16 | 201010106 | Epoxy casting resin | 95 | 72 | 10 | Details |
| B12N-1-M16+M20 | 201010107 | Epoxy casting resin | 130 | 72 | 10 | Details |
| C12N-1-M16+M20 | 201010108 | Epoxy casting resin | 130 | 90 | 16 | Details |
| D12N-3-M16+M24 | 201010109 | Epoxy casting resin | 130 | 130 | 25 | Details |
| A24S-1-M10+M16 | 201010110 | Epoxy casting resin | 175 | 70 | 5 | Details |
| A24S-1-M12+M16 | 201010111 | Epoxy casting resin | 175 | 70 | 5 | Details |
| A24N-1-M10+M16 | 201010112 | Epoxy casting resin | 210 | 70 | 5 | Details |
| A24N-1-M12+M16 | 201010113 | Epoxy casting resin | 210 | 70 | 5 | Details |
| B24S-1-M16+M20 | 201010114 | Epoxy casting resin | 175 | 80 | 10 | Details |
| B24N-1-M16+M20 | 201010115 | Epoxy casting resin | 210 | 85 | 10 | Details |
| B24N-2-M16+M20 | 201010116 | Epoxy casting resin | 210 | 85 | 10 | Details |
| B24F-1-M16+M20 | 201010117 | Epoxy casting resin | 210 | 98 | 10 | Details |
| A36N-1-M10+M16 | 201010118 | Epoxy casting resin | 300 | 80 | 5 | Details |
| A36N-2-M10+M16 | 201010119 | Epoxy casting resin | 300 | 80 | 5 | Details |
| B36N-1-M16+M24 | 201010120 | Epoxy casting resin | 300 | 95 | 7.5 | Details |
| B38.5F-1-M16+M24 | 201010121 | Epoxy casting resin | 325 | 98 | 10 | Details |
| 30/30-M8 GH | 201010122 | Epoxy casting resin | 30 | 33 | 3 | Details |
| 60/60-M12 GH | 201010123 | Epoxy casting resin | 60 | 60 | 12.5 | Details |
| 80/60-M12 GH | 201010124 | Epoxy casting resin | 80 | 60 | 7.5 | Details |
| A 3/60-1-M12 | 201010125 | Epoxy casting resin | 60 | 60 | 5 | Details |
| A 3/60-2-M12 | 201010126 | Epoxy casting resin | 60 | 60 | 5 | Details |
| B 3/70-1-M16 | 201010127 | Epoxy casting resin | 70 | 66 | 7.5 | Details |
| C1R-3 | 201010128 | Epoxy casting resin | 45 | 86 | 12.5 | Details |
| B3/65-2 | 201010131 | Epoxy casting resin | 65 | 66 | 7.5 | Details |
| 30/30-M6 GH | 201010133 | Epoxy casting resin | 30 | 33 | 3 | Details |
| A12N-1-M12+M16 | 201010134 | Epoxy casting resin | 130 | 60 | 5 | Details |
| B1R-4 | 201010135 | Epoxy casting resin | 45 | 66 | 7.5 | Details |
| C36N-1 M16/M24 | 201010136 | Epoxy casting resin | 300 | 130 | 16 | Details |
| D24N-1 M16/M24 | 201010137 | Epoxy casting resin | 210 | 130 | 25 | Details |
| 40/40-M10 | 201010138 | Epoxy casting resin | 40 | 45 | 6 | Details |
| 65/55 M12+M12 | 201010139 | Epoxy casting resin | 65 | 55 | 8.2 | Details |
| 95/55 M12+M12 | 201010140 | Epoxy casting resin | 95 | 55 | 5.3 | Details |
| B 3/87-2-M16 | 201010141 | Epoxy casting resin | 87 | 66 | 7.5 | Details |
| A 1/40-1-M10 | 201010142 | Epoxy casting resin | 40 | 60 | 5 | Details |
| 50/50-M10 | 201010143 | Epoxy casting resin | 50 | 55 | 9 | Details |
| B 3/87-1-M10 | 201010144 | Epoxy casting resin | 87 | 75 | 7.5 | Details |
| A36N-1 M12+M16 | 201010304 | Epoxy casting resin | 300 | 80 | 5 | Details |
A36N-1-M10+M16 - Features
| Designation | Value |
|---|---|
| Material | Epoxy casting resin |
| Height | 300 |
| Diameter | 80 |
| Bending strength | 5 |
| Creepage distance | 434 |
| Temperature range | -40/+90 °C |
| Indoor/outdoor system | Indoor facility |
| Rated AC voltage | 170 |
| Foot fitting | M16x33 |
| Head fitting | M10x16 |
| Permissible operating voltage | 36 kV |
